Frequency : 2G: 850/900/1800/1900Mhz Quad Bands
3G/ UMTS/HSPA: B1,B2,B5,B18,B19
4G: LTE FDD: B1/B3/B5/B7/B8 LTE TDD: B34/B38/B39/B40/B41 or other customize bands.
Interface: RS485x1 (support maximum two Ultrasonic Fuel Level Sensor).
FOTA: Support ITA Firmware of tracker & OTA Ultrasonic Fuel level sensor.
SMS & GPRS Commands: Support.
Protocol: TCP/IP.
Waterproof Class: IP67.
GPS Module: Built-in GPS module, antenna.
GSM Module: Built-in QUCTEL EC20/EC21/EC25 for Different Countries.
Working temperature: -20°C-70°C .
Working Moisture: 5%-95%.
Located sensitivity: <2m.
Locate time: Cold Start: 35s, Warm Start 15s, Hot Start 1-3s.
GNSS sensitivity: -165bdm.
GNSS frequency: L1,1575.42MHz.
GNSS receiver: 33 channels GPS/Beidou/Glonass.
LED indicator: RED: Network, Quick Flash-GSM dialing, Slow Flash-GSM Working Normal, Stable On-Online in Server GREEN Quick Flash-GPS Locating, Stable-GPS Located.
Working Voltage: 9-45V DC.
Working Current: 20mA/12V 0.42W.
Back-up battery: 180mAh.
Tracker size: 103mm *32mm *18mm.
Weight: Net weight 60g.

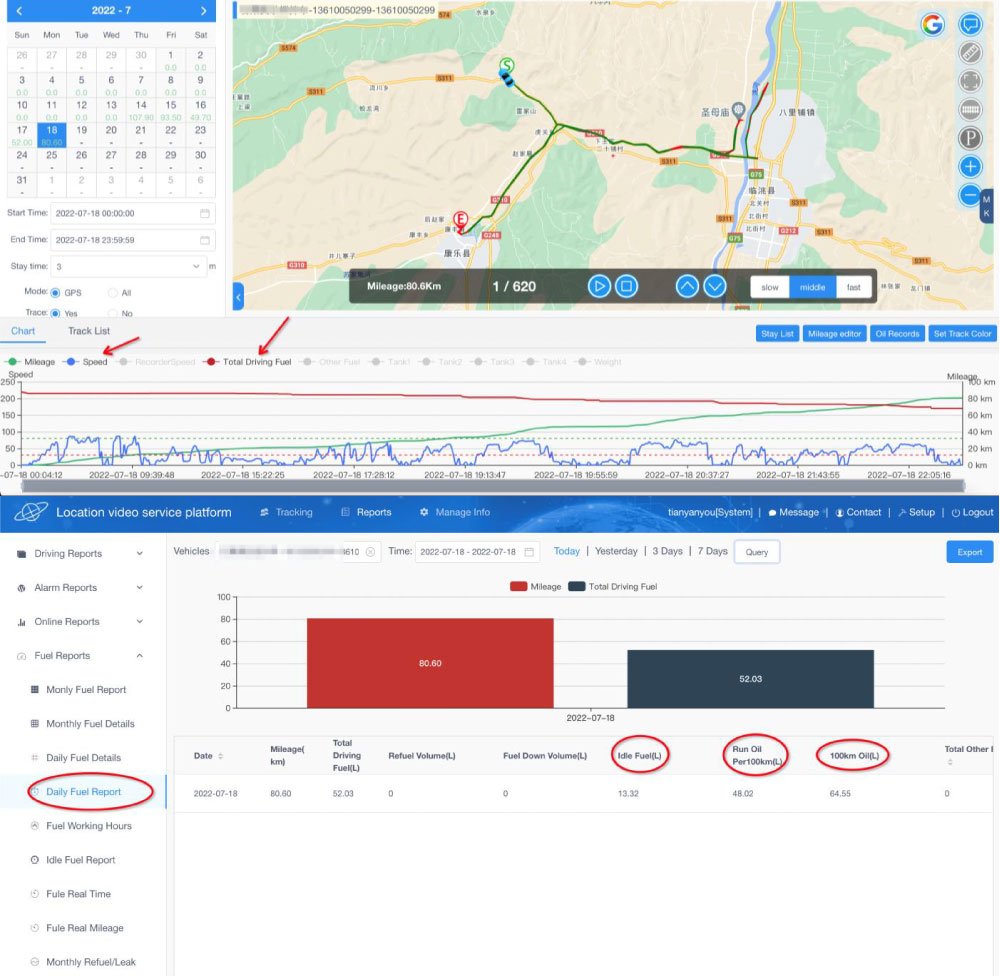

Platform & Reports:

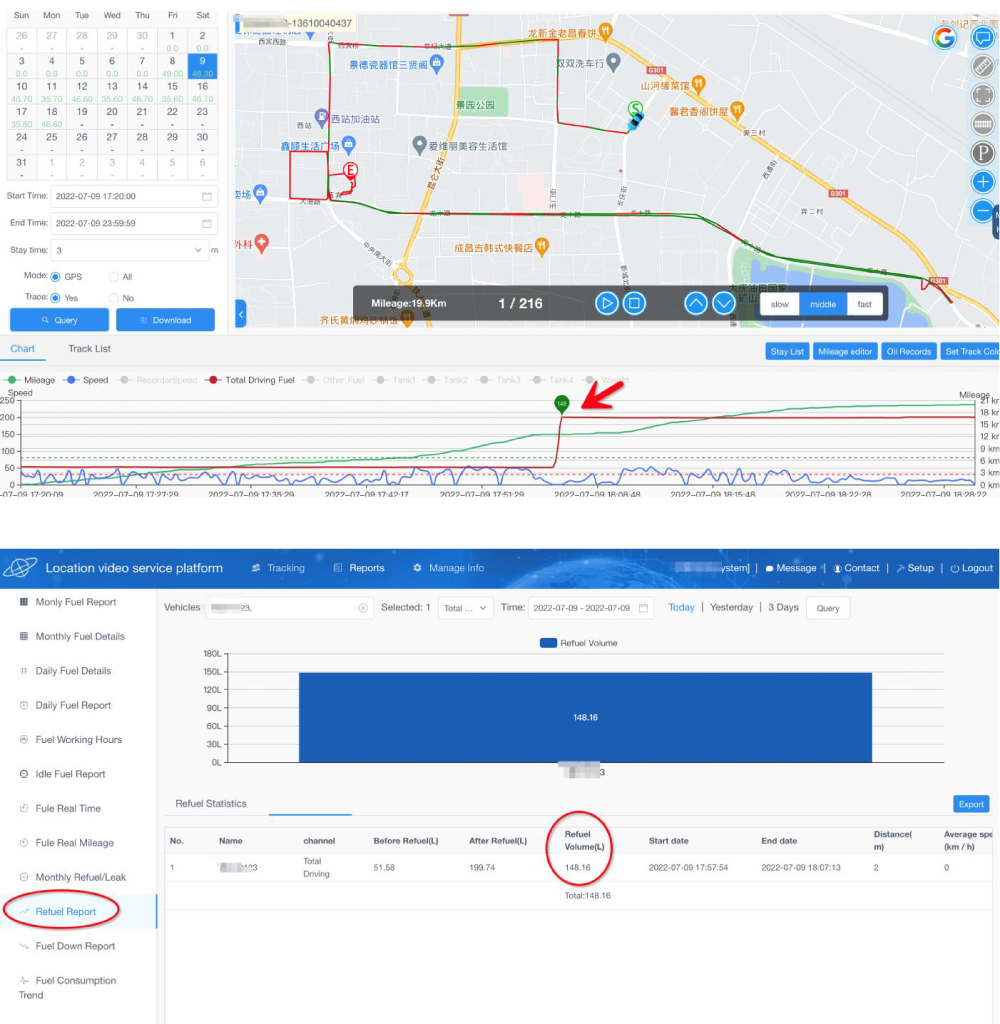

Refuel Reports:

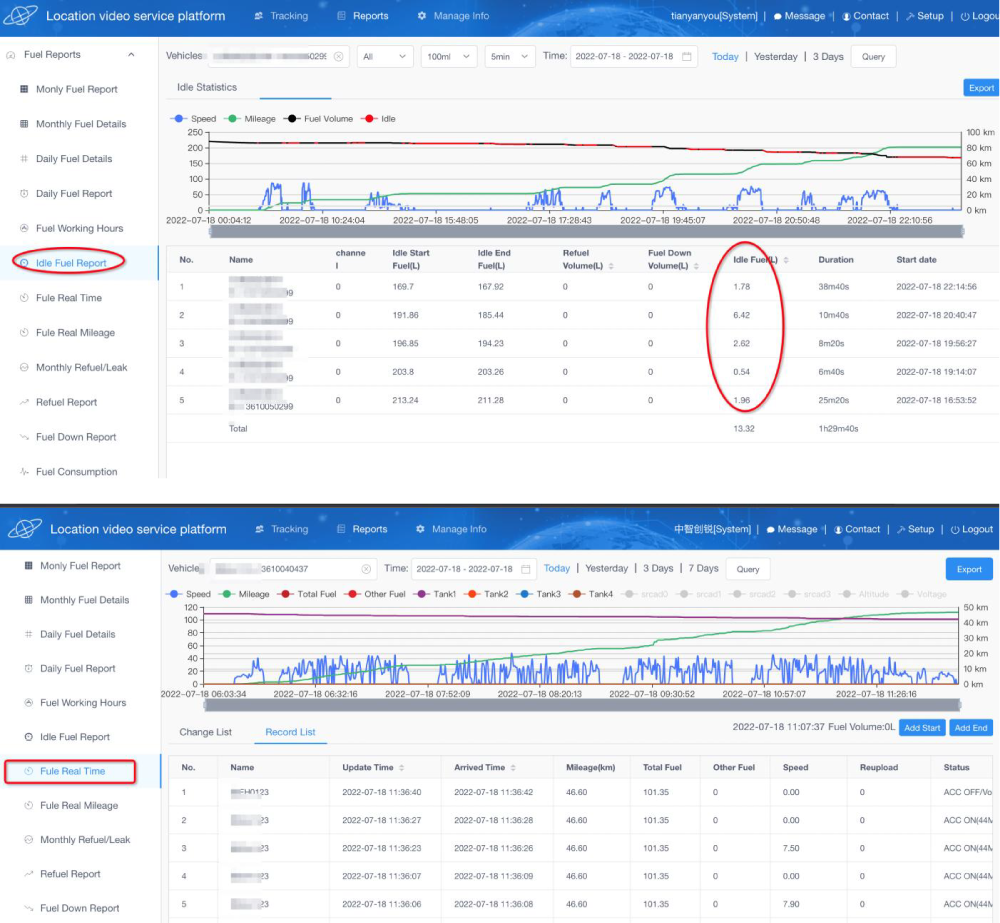

Idle Reports & Fuel Real Time
